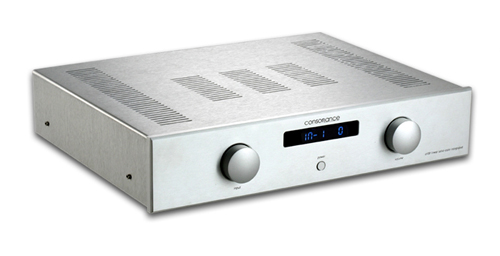

A100 Linear Solid-state Integrated Amplifier


color option

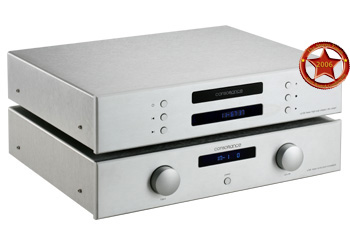

A100 Linear is the perfect partner for Consonance's CD120 Linear CD player and CD120 CD player.

Specifications:

Power output : 80W + 80W at 8 Ohms
Minimum load : 4 ohms speakers can be connected.
Input Sources : 5 selectable inputs switched by gold plated relays
Input Terminals : Gold plated Phono/RCA unbalanced
Output Terminals : One set of gold plated speaker terminals each channel
Line level Outputs : Gold plated Phono/RCA unbalanced pre out
Frequency response : - 0.5 dB deviation 2Hz-100kHz
Phase response : Less than 2 degrees deviation 2Hz-100kHz
Signal-to-noise ratio : More than 95dB
Input Sensitivity : 500mV
Distortion : Less than 0.02% ( 20W 8 0hms)
Inter-modulation : Less than 0.01% (19kHz + 20kHz)
Remote Control : RC-5 compatible IR system 36kHz modulation
Dimensions / Weight : 8cm x 43cm x 29cm (HxWxD) / 10kg
