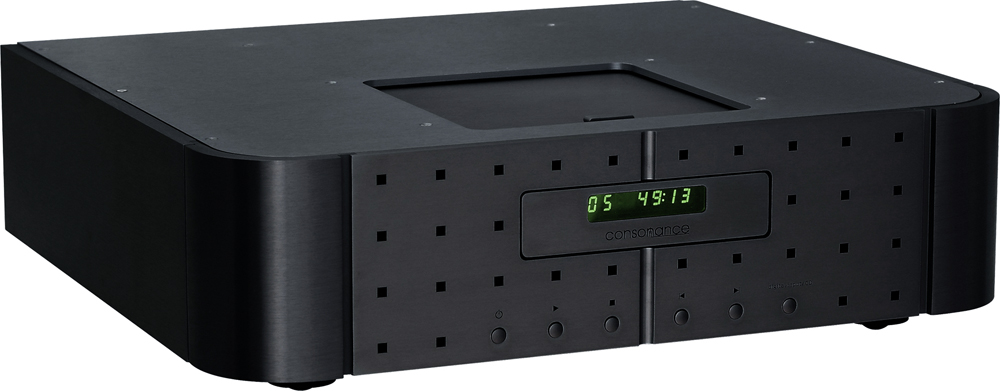

Turandot

The Turandot is the new height that Opera audio has achieved in a 24bit over sampling CD-player. Advanced digital and analogue design, construction techniques and components, which have been carefully selected, have been combined to provide the highest performance. The Turandot is built using 2 separate power supplies, the CD-loader support remains the same developed for the Droplet CDP5.0, which is also a sandwich type graphite float for exceptional stability to control drive vibration. Along with a clear super clock technological improvement over the previous design, the Turandot has achieved the ability to reduce the digital distortion close to the theoretical minimum for a 16-bit jitter-test.

Features:

-Digital jitter down to an astonishing 118 psec.
-Digital Sample Rates (Fs): 352.8 kHz sample rates for CD playback to the analog audio outputs.
-DAC section with local clock and PCM1792 chip under the main board.
-Separate mains transformers and multiple supply regulation for the transport servos and digital processing sections.
-Differential analogue filter and output stage based around high quality Burr-Brown OPA627 opamps. This stage includes independent power supply regulation.



RESOURCES
Literature sheet
REVIEW
Specification :
DAC resolution
24bit 192KHz multilevel sigma-delta with synchronous up sampling
0dBFS signal output
2.3V RMS RCA,4.6V RMS XLR
Output Terminals
Gold plated Phono/RCA unbalanced and gold plated XLR balanced
Frequency response
Less than +/- 0.1 dB deviation 20Hz-20kHz
Phase response
Less than 2 degrees deviation 20Hz-20kHz
Signal-to-noise ratio
More than 105dB
Crosstalk
Less than -100dB
Distortion
Less than 0.004% RCA, Less than 0.004% XLR
Remote Control
Philips RC-5 compatible IR system 36kHz modulation frequency
Dimensions / Weight
11cm x 45cm x 33cm (HxWxD) / 18kg
