Droplet LP5.0MKII Turntable System with Special Made Stand

November 2005
RESOURCES

Looking for Adobe Reader?
color option:

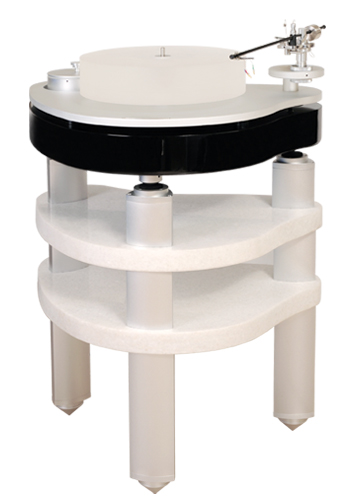

Droplet LP 5.0 is not simply a turntable, rather it is a 'system' consisting of turntable and stand, it is constructed from two slabs of polished pale marble separated by massive, triangular sections and supported by anodized-alloy columns - all tensioned by threaded rods running through the structure. The shape of the marble echo's the curves of the turntable, with the columns directly beneath the cones on the base of the turntable.

The design is kept relatively simple, following well established 'best practices' - it is a conservative design. In essence it is a solid plinth design carrying a massive, tool-steel, inverted-bearing sleeve/shaft with a ceramic ball as the actual load bearing structure.

Though similar to other turntables out there, the LP-5 is quite different in one respect, the stand. Opera sells this table with an integrated marble stand. see more of this review...

The German AC motor rests in a separate housing which then sits on a cork base within the wooden section of the plinth.
The main bearing and mounting board of the arm is rigidly linked. Both are bolted to a 1 cm thick alloy plate which sits via three alloy cylinders onto the wooden part of the plinth.

Upgrade:
AC motor
high precision speed controler PS-1
new high quality bearing



Features :

Suspension: Mass-loaded on 3 point solid aluminum domes
Plinth: One piece machined anodized aluminum.
Platter: Machined 67mm acrylic contoured to match record surface (indent for record label).
Bearing: Large diameter inverted fixed spindle with polished ceramic ball on a teflon thrust plate.
Motor: German manufactured precision hi torque AC motor with pully (33+45rpm).
Speed control box: high precision speed controler PS-1.
