Color Option

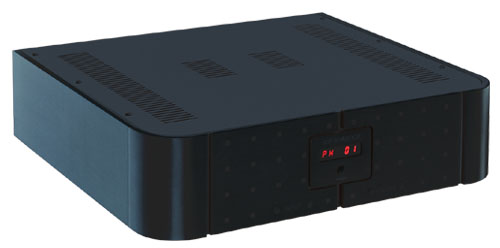

This solid-state amplifier also applies CooL Class A technology inherited from the Calaf.

Combined with the advantage of class AB and the class A technology, the Cool Class A technology actually achieved the same linear sound performance but without the normal need of a big electrical current, as Class A does.

The heart of the phono stage is a super-quiet analog device microphone preamp based on op-amps. After the adjustable linear gain stage, the signal passes through a passive low-pass RIAA filter and the low-frequency cutoff switch, followed by active RIAA equalization. The low-impedance unbalanced signal can then be output directly.

- 100 watt output power
- LED display equipped
- Relay switched input source selector
- Digitally controlled active preamp stage
- Cool Class A technology applied in an amplifier stage
- High quality MM/MC phono stage employed


Power output 100W +100W at 8 Ohms
Minimum load 4 ohms speakers can be connected.
Input Sources 4 selectable inputs switched by gold plated relays
Input Terminals Gold plated Phono/RCA unbalanced
Phono input (MM,MC) selectable
Frequency response - 0.5 dB deviation 2Hz-80kHz
Signal-to-noise ratio More than 95dB
Input Sensitivity: 300mV
Distortion Less than 0.02% ( 70W 8 0hms)
Remote Control Philips RC-5 compatible IR system 36kHz modulation frequency
Dimensions / Weight 11cm x 45cm x 40cm (HxWxD) / 22kg
