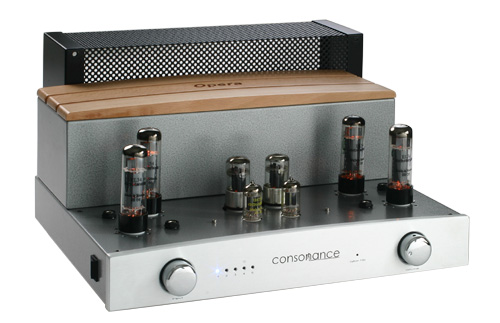

CYBER-100 Signature(EL34)

The Cyber100 signature deliver a taste of luscious tube sound compared with solid state gear at the same price. This tube amp is mothered by M100plus, the highly reviewed push-pull set Internationally, which has been our best selling integrated tubeamp since the company was found in 1994. It now comes with 5 input prs, remoteable selector switch and volume pot. It uses low negative feedback with choke design, so no further bias regulation would be needed for optimal tube regulation and sound. At 40 watts, the Cyber100 signature also comes with a power transformer and circuitry that is over spec and built to easily accept the extra current of the KT88. The EL34 can also be used.

Integrated tube amp (EL34 push-pull, 40W)


Control Functions: Remotable,Volume, Select, Power On/Off
Power Output: 40 watt, RMS 1kHz
Total Harmonic Distortion: less than 1%(10watt, 1kHz)
Frequency Response: (-3dB points at 10 watt) 6Hz-50kHz
Input Sensitivity: 260mV
Input Impedance: 50k ohms
Output Impedance: 4 , 8 ohms. User selectable.
Signal/Noise: 90dB
Consumption: 100watt
Output Interfaces: 1 groups (RCA)
Input Interfaces: 5 groups (RCA) 1,2,3,4,5
Overall Negative Feedback: Little (-6dB)
Vacuum Tube: EL34/6550 x 4,12AT7 x 2, 6SN7 x 2
Dimensions: 430 (L) x 380 (W) x 190(H) mm
Weight: 25kg (packed)
