M100 plus		M100S plus

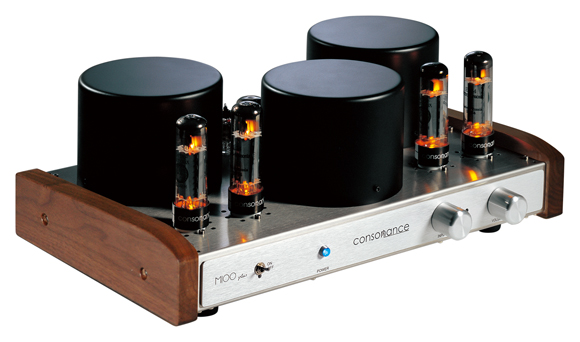

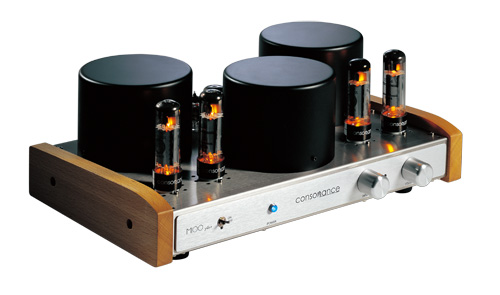

M100 plus Integrate Tube Amplifier

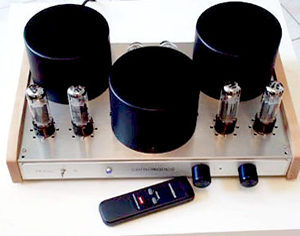

M100plus__EL34 integrate amplifier, the most well received model in our products line The 8-year-old EL34 integrate amplifier might be the most successful model in CONSONANCE tube products line. Including M100,M100MKII, M100SE and M100plus, the well improved push-pull set has already satisfied more than ten thousand user around the world. This amplifier may also be ordered in 300B version named M100Splus or 6L6GC version named M99plus with less power output.

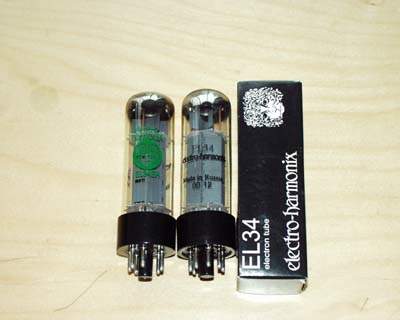

Specification: Control Functions: Volume, Input, Power On/Off Power Output: 40 watt,RMS 1KHz Total Harmonic Distortion: less than 1%(10watt, 1kHz) Frequency Response: (-3dB points at 10 watt) 6Hz-60kHz Input Sensitivity: 290mV Input Impedance: 100k ohms Output Impedance: 4, 8 ohms. (User selectable.) Signal/noise: 90dB Consumption: 90watt Input Interfaces: 3 groups (RCA) ---(1,2 , 3 on the rear panel) Overall Negative Feedback: Little (-6dB) Vacuum Tube: EL34 x 4, 12AT7 x 2, 6SN7 x 2 Dimensions: 446(L) x 264(W) x 155(H) mm Weight: 20.5kg	RESOURCES Looking for Adobe Reader?
