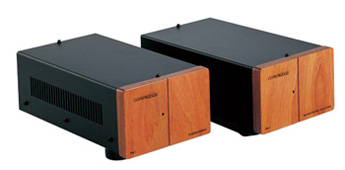

PM-1,the hand wired MM phono stage, is completely separated with power supplies including a special designed interconnect cable for low noise characteristics. The precision RIAA circuitry profit from deep negative feedback offering neutral sound performance and live theater feeling. |
Besides MM, PM-2 is also enable to be received the fragile MC cartridge output directly. We hope you agree with us and most of satisfied users that these sets really act as lengths of pure copper cable in the LP system. |
Specification:
Control Functions: Power On/Off
Harmonic Distortion (for 2V RMS at output): 0.01%
Input Sensitivity : 3-5mV
Input Impedance: 47k ohms
Input Interfaces: 1 group (RCA)
Output Interfaces: 1 group (RCA)
Signal / Noise: 86dB
Consumption: 40Watt
Vacuum Tube: 12AX7/ECC83 x 2
Dimensions: 295(L) x 255(W) x 95(H) mm
Weight: 9kg(net);9.5kg(shipping) |
Specification:
Control Functions: Power On/Off ,Switch MM / MC , MC Switch 5 ohm / 40 ohm
Harmonic Distortion (for 2V RMS at output): 0.01%
Input Impedance: 47k ohms( MM ) , 5 ohm( MC ), 40 ohm( MC )
Input Gain: 40dB (MM ) / 66 dB ( MC ,5 ohm)/ 57dB(MC ,40 ohm)
Input Interfaces: 1 group (RCA)
Output Interfaces: 1 group (RCA)
Grounding Interfaces: 1 group
Signal / Noise: 86dB
Consumption: 40watt
Vacuum Tube: 12AX7 x 2
Dimensions: 295(L) x 255(W) x 95(H) mm
Weight: 9kg |
