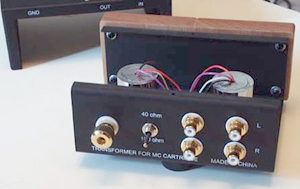

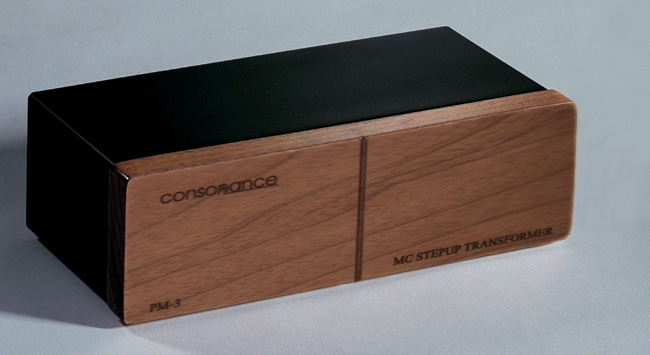

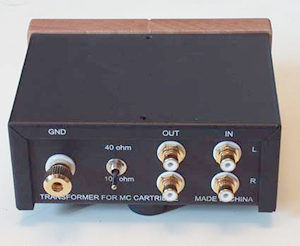

PM-3__Stepup transformer for MC cartridge . Stepup transformer for MC cartridge, placed MM phono stage ahead.

SPECIFICATION:

CONTROL FUNCTIONS: Input impedance selecting
INPUT IMPEDANCE: 20 / 100 ohm
INPUT GAIN: 20dB ( 20 ohm ) / 13 dB ( 100 ohm )
RECOMMENDED LOAD: 47k ohm
FREQUENCY RESPONSE: 5Hz - 100kHz
INPUT INTERFACES: 1 group ( RCA )
OUTPUT INTERFACES: 1 group ( RCA )
GROUNDING INTERFACE: 1 group
DIMENSIONS: 140( L ) x 150( W ) x 750( H ) mm
WEIGHT: 3kg
