ReferenceCD120

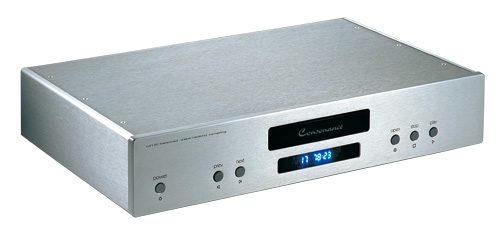

CD-120 Balanced CD Player

IN HI-FI CHOICE best buy

This high-end CD player is based on the same technology platform as the Consonance Reference CD2.2 player. It uses the same power supply and processor control system as the RCD2.2, and features a fully balanced multilevel 24 bit 192kHz DA-converter with synchronous upsampling. The CD120 is also using the SuperClock with an very low jitter level. Both digital and analog outputs for different types of connectors. CD120 can be used with any type of music system, but to fully take advantage of Consonance's distinctive music reproduction, we recommend that you use the XLR outputs of CD120 in combination with consonance balanced amplifiers.

Specification:

DAC resolution : 24bit 192KHz multilevel sigma-delta with synchronous upsampling
Clock Jitter : Less than 14ps directly distributed to DAC
0dBFS signal output : 2.3V RMS
Output Terminals : Gold plated Phono/RCA unbalanced and gold plated XLR balanced
Frequency response : Less than +/- 0.1 dB deviation 20Hz-20kHz
Phase response : Less than 2 degrees deviation 20Hz-20kHz
Signal-to-noise ratio : More than 105dB
Crosstalk : Less than -100dB
Distortion : Less than 0.002%
Intermodulation : Less than 0.002% (19kHz + 20kHz)
Remote Control : Philips RC-5 compatible IR system 36kHz modulation frequency
Dimensions / Weight : 8cm x 43cm x 29cm (HxWxD) / 10kg
