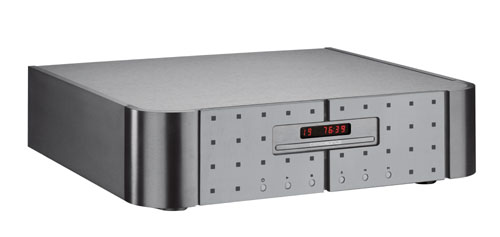

Forbidden City-Turandot
Color Option


Turandot should be the new height Opera audio ever achieved in 24bit over sampling CD-player. Advanced digital and analogue design, construction techniques and components which have been carefully selected combine to provide the highest performance. Turandot is built using 2 separate power supplies, the CD-loader support remain the technology developed for the Droplet CDP5.0, is also sandwich floated by graphite for exceptional stability to control drive vibration. Along with a clear super clock technological improvement over the previous design, Turandot has achieved the ability to reduce the digital distortion colse to the theoretical minimum for a 16-bit jitter-test.

Features:

-Digital jitter down to astonishing 118 psec.
-Digital Sample Rates (Fs): 352.8 kHz sample rates for CD playback to the analog audio outputs.
-DAC section with local clock and PCM1792 chip under the main board.
-Separate mains transformers and nultiple supply regulation for the transport servos and digital processing sections.
-Differential analogue filter and output stage based around high quality Burr-Brown OPA627 opamps. This stage includes independent power supply regulation.

Specifications:

DAC resolution : 24bit 192KHz multilevel sigma-delta with synchronous up sampling
0dBFS signal output : 2.3V RMS RCA,4.6V RMS XLR
Output Terminals : Gold plated Phono/RCA unbalanced and gold plated XLR balanced
Frequency response : Less than +/- 0.1 dB deviation 20Hz-20kHz
Phase response : Less than 2 degrees deviation 20Hz-20kHz
Signal-to-noise ratio : More than 105dB
Crosstalk : Less than -100dB
Distortion : Less than 0.004% RCA, Less than 0.004% XLR
Remote Control : Philips RC-5 compatible IR system 36kHz modulation frequency
Dimensions / Weight : 11cm x 45cm x 33cm (HxWxD) / 18kg
