Consonance has held the leader position in China since Reference CD2.2 and CD120 got released and introduced several over sampling CD player models followed each one advancing performance. This redefining process of over sampling CD-players has been recognised by more than 24 hi-fi magzines with fully recommended by reviewers and has made Consonance a big name of the very best CD player range.

Consonance’s finest CD players to date is the astonishing Droplet CDP5.0 which alone has enjoyed 2 awards of “Products of year” from Germany and USA in 2006.

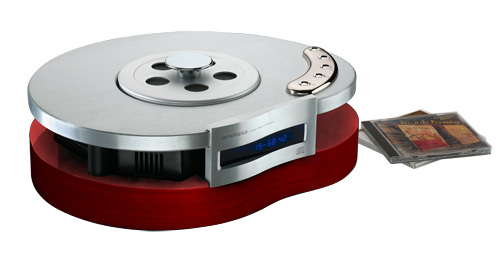

Following our great success with the Droplet CDP5.0, we have decided to bring some of its advanced technology to a smaller size non-tube CDplayer -----Droplet CDP3.1(Mini Droplet).

Droplet CDP3.1 is the latest advanced 24bit over sampling CD-player Opera audio ever developed, Advanced digital and analogue design, construction techniques and components which have been carefully selected combine to provide the highest performance. The top-loading CD-drive and support are all remain the technology developed for the Droplet CDP5.0. Besides it has achieved a clear technological improvement over the previous over sampling design with the ability to process signals as high as 768 kHz to release all the information available in your CD disk library.

Features:
Master clock jitter below measurable levels, with a digital buffer circuit to eliminate jitter.
Digital Sample Rates (Fs): 768 kHz sample rates for CD playback to the analog audio outputs.

Digital / Analog Converters : AD1853,SRC4193
0dBFS signal output: 2.5V RMS RCA
Output Terminals: Gold plated Phono/RCA unbalanced
Frequency response: Less than +/- 0.1 dB deviation 20Hz-20kHz
Phase response: Less than 2 degrees deviation 20Hz-20kHz
Signal-to-noise ratio: More than 100dB
Crosstalk: Less than -100dB
Distortion (RCA): Less than 0.003%
Intermodulation: Less than 0.002% (19kHz + 20kHz)
Remote Control : Philips RC-5 compatible IR system 36kHz modulation frequency
Dimensions / Weight 14cm x 38cm x 43cm (HxWxD) / 20kg
