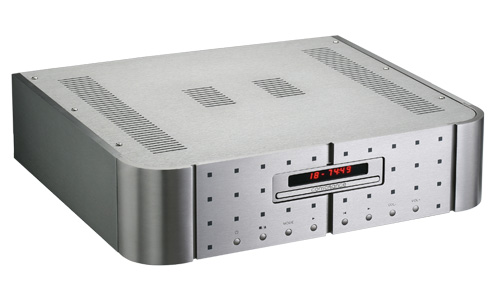

Forbidden City - Ping
Color Option


Forbidden City-Ping is mainly designed to introduce real hifi perfomance into 3-in-1 system! With all hifi grade components applied, it consist of a hifi CD-player, a FM/AM tuner and a 100w solid-state stereo amplifier, and more over, featured with a special made USB input port, which is very useful interface that the whole family can play all types of music through Ping, from CD discs to all music formats computer based.

- Linear technology applied in DAC stage
- 100 watt output power delivering per channel
- Cool Class A technology applied in amplifier stage
- High quality FM/AM tuner stage employed
- All functions remoteable

Linear technology (applied to DAC stage):

-Non-oversampling, no digital filter
-J-FET/Transisters filter, no op-amp at all
-Passive I/V conversion In progression
-Short pass length, minimal number of parts

Cool Class A technology (applied to Amplifier):

Combined the advantage of class AB and the class A technology, the Cool Class A technology actually achieved same linear sound performance essentially but without normal need of big electrical current, as Class A does.

SpAct memory architecture (applied to USB interface):

It's unique system that recovers the audio clock from USB.
Analog pulls with SpAct enable playback with very low clock jitter.

Specifications:
Mains Supply: 230V / 50Hz or 115V / 60 Hz.

Amplifier section:
Power output : 100W + 100W at 8 Ohms
Minimum load : 4 ohms speakers can be connected
CH Sources : one remote controllable inputs switched by gold plated relays
Frequency response : Less than +/- 0.1 dB deviation 20Hz-80kHz
Phase response : Less than 2 degrees deviation 20Hz-80kHz
Signal-to-noise ratio : More than 95dB
Crosstalk : Less than -100dB
Distortion : Less than 0.015% at 80W 8 0hms
Remote Control : RC-5 compatible IR system 36kHz modulation
Dimensions / Weight : 11cm x 45cm x 33cm (HxWxD) / 20kg

CD section :
DAC resolution : 16bit TDA1543
Frequency response : Less than +/- 0.5 dB deviation 20Hz-20kHz
Phase response : Less than 5 degrees deviation 20Hz-20kHz
Signal-to-noise ratio : More than 100dB
Crosstalk : Less than -100dB
Distortion (RCA) : Less than 0.12 %

Tuner section:
FM :
Tuning range: VHF/FM 87.5-108MHz
Sensitivity: (INF)10dB uV/m
Signal/Noise Ratio: 55dB
AM :
Tuning range: VHF/AM 522 - 1620 kHz
Sensitivity: (INF)60dB uV/m
Signal/Noise Ratio: 45 dB

USB section:
Fully compliant with USB1.1 specification
THD+N:0. 006%(at self-powered)
Dynamic range: 98 dB
USB part Operating System (Computer)
