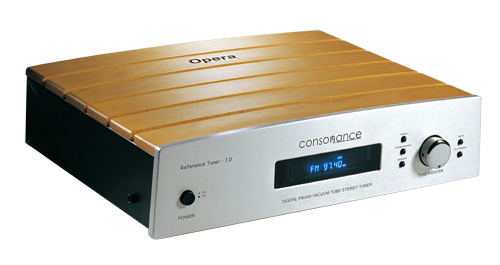

Reference tuner-1.0 Tube FM/AM Hi-Fi Digital Tuner
FM radio broadcasts have the potential to offer the finest sound quality. There is a vast wealth of program material available, twenty-four hours a day, and yet the tuner is often relegated to a secondary place in a hi-fi system. To catch and remain every details of a broadcast requires a great deal of skill in both design and manufacture. With Sovtek 6H30 vacuum tube output stage, the Ref.Tuner-1.0 continues the Consonance tradition of producing the best tube sounding tuners and is based on technology developed and refined by opera audio over 8 years. VFD display, auto-tuning and the exact memory, it's fully remote controlled and has multiple presets for all your favourite stations. Forty station could be auto-scan-stored for FM/AM. The anti-jamming system make broadcast signal clear and articulate with minimal noise, when correctly installed with a suitable aerial.

Specification:

Vacuum tube: Sovtek 6H30 x 1

Mains Supply: 100V/115V/230V 50 or 60 Hz.
Preset Memory: 40 stations
Dimensions / Weight : 21cm x 43cm x 33cm (HxWxD) / 18kg (wood top panel)

FM :
Tuning range: VHF/FM 87.5-108.5MHz
Sensitivity: (INF)10dB uV/m
Signal/Noise Ratio: 55dB
Output level: 700mV per channel at 100% modulation

AM :
Tuning range: VHF/AM 522 - 1620 kHz
Sensitivity: (INF)60dB uV/m
Signal/Noise Ratio: 45 dB
Output level: 700mV per channel at 100% modulation
