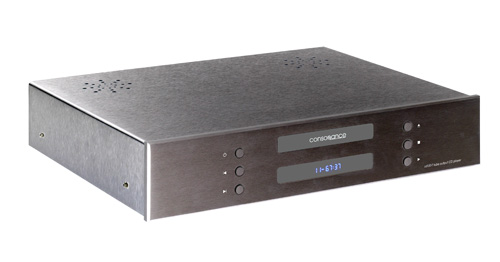

CD120T CD Player

DAC resolution : 24bit 192KHz multilevel sigma-delta with synchronous upsampling
Clock Jitter : Less than 14ps directly distributed to DAC
0dBFS signal output : 2.3V RMS (RCA),4.6V (XLR)
Output Terminals : Gold plated Tube RCA unbalanced and gold plated XLR balanced
Frequency response : Less than +/- 0.1 dB deviation 20Hz-20kHz
Phase response : Less than 2 degrees deviation 20Hz-20kHz
Signal-to-noise ratio : More than 110dB (XLR output)
Signal-to-noise ratio : More than 100dB (Vacuum tube RCA output)
Crosstalk : Less than -100dB
Distortion (XLR) : Less than 0.0025%
Distortion (RCA) : Less than 0.03%
Intermodulation : Less than 0.002% (19kHz + 20kHz)
Remote Control : Philips RC-5 compatible IR system 36kHz modulation frequency
Vacuum tube : Sovtek 6H30 x1
Dimensions / Weight : 12cm x 43cm x 33cm (HxWxD) / 16kg(wood top panel)
Dimensions / Weight : 12cm x 43cm x 33cm (HxWxD) / 18kg(Metal top panel)
