Reference CD2.2MKIII Reference CD2.2 Linear

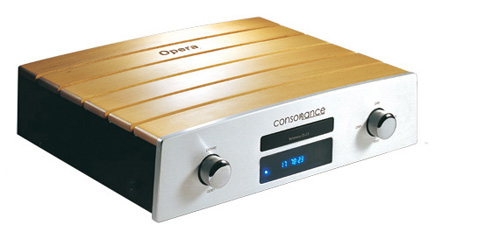

Reference CD-2.2MKIII Balanced/RCA Tube CD Player With Volume Control
Color Option
In 2003 Opera introduced the CD 2.2. This CD player is a 24bit/192khz DAC chip player with a superclock. Over the past 7 years the CD2.2 been improved upon to keep up with the current state of audio but has always been at the forefront of digital playback.The DAC is a true balanced direct output from the DAC chip, creating a very pleasing, natural sound. Using a 6H30 RCA analog tube stage makes regular playback very smooth and relaxing. Our tube of choice, the Russian military 6H30, is not only considered an excellent sounding tube but is also very linear.

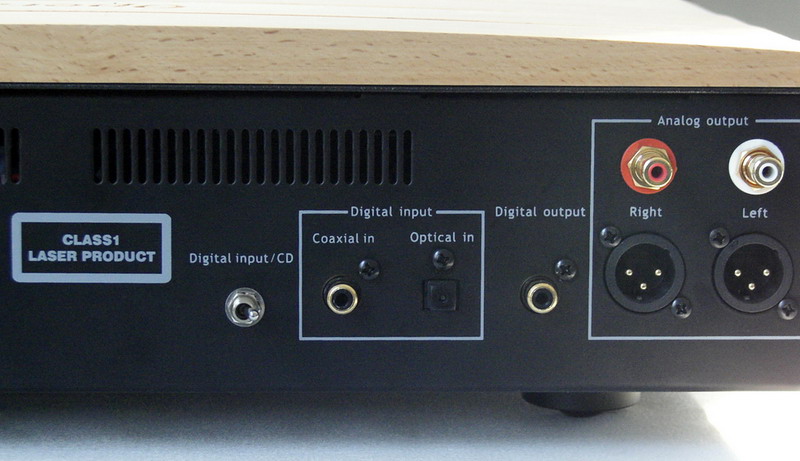

The new RCD2.2MK3 CD player allows for a digital input from our Wireless Digital Transmitter Box 1.0 as well as from other cd transports, cable TV decoders or satellite receivers, either through the CD player's co-axial or optical inputs or with any other device with a digital PCM output. This will not only provide high quality audio but also is very easy to use. The future of digital playback is here and changing everyday, Opera Audio is providing our customers with the most up to date high quality equipment for their future audio enjoyment.

DAC resolution : 24bit 192KHz multilevel sigma-delta with synchronous upsampling
Clock Jitter : Less than 14ps directly distributed to DAC
0dBFS signal output : 2.3V RMS (RCA),4.6V (XLR)
Output Terminals : Gold plated Tube RCA unbalanced and gold plated XLR balanced
Frequency response : Less than +/- 0.1 dB deviation 20Hz-20kHz
Phase response : Less than 2 degrees deviation 20Hz-20kHz
Signal-to-noise ratio : More than 110dB (XLR output)
Signal-to-noise ratio : More than 100dB (Vacuum tube RCA output)
Crosstalk : Less than -100dB
Distortion (XLR) : Less than 0.0025%
Distortion (RCA) : Less than 0.03%
Intermodulation : Less than 0.002% (19kHz + 20kHz)
Remote Control : Philips RC-5 compatible IR system 36kHz modulation frequency
Vacuum tube : Sovtek 6H30 x1
Dimensions / Weight : 11cm x 43cm x 33cm (HxWxD) / 16kg(wood top panel)
Dimensions / Weight : 11cm x 43cm x 33cm (HxWxD) / 18kg(Metal top panel)
