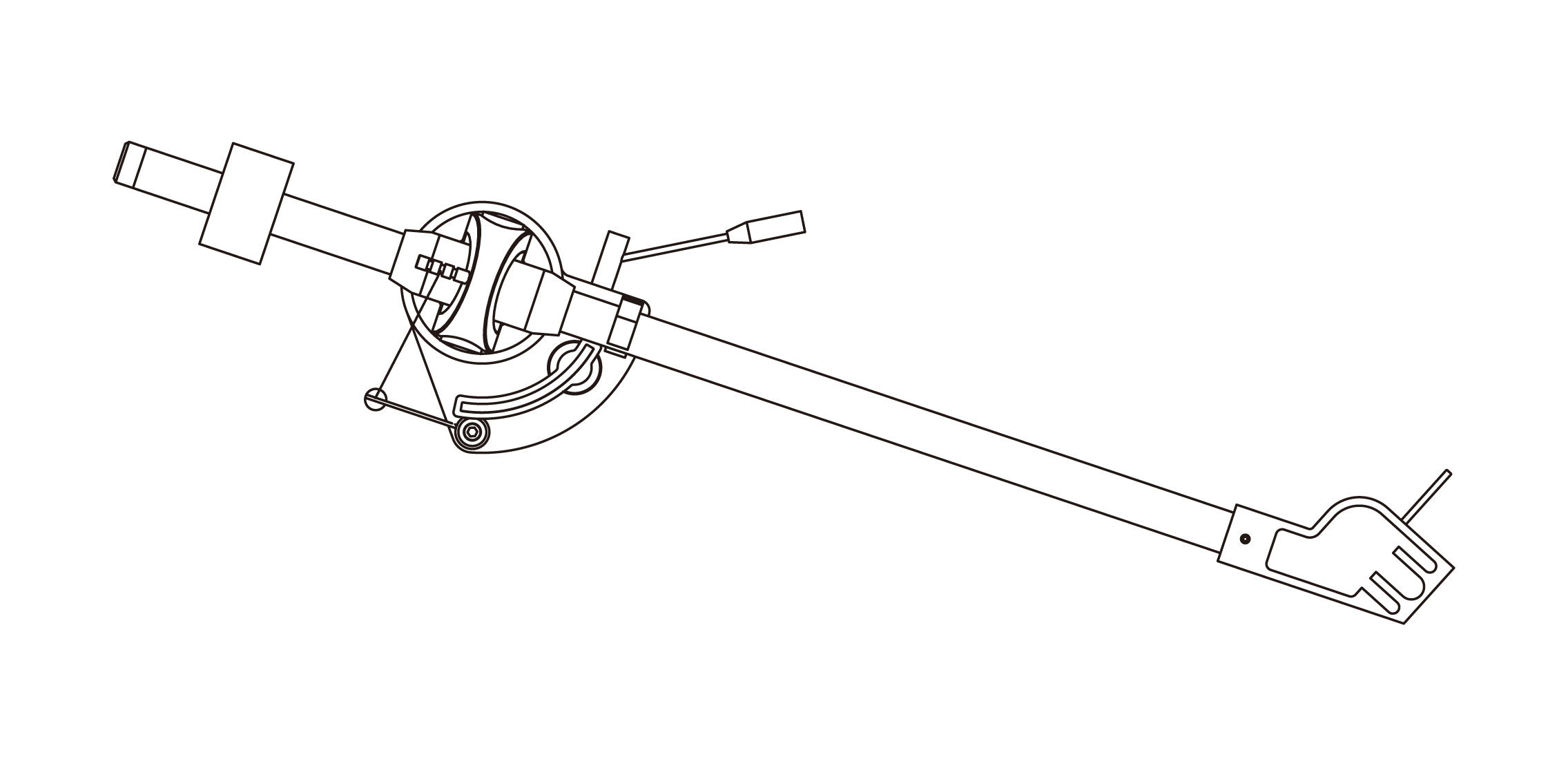

ST100 Tone arm

Feature of ST100 Tonearm :
1:Multi-pivot static balance tonearm system
2:Stainless Steel Arm Base, watch grade precision ( ± 0.1mm ) and finish.
3:Carbon Fiber Arm Tube, capable to absorb the viberation come from countweight
4:Vertical height(Zenith/VTA) , azimuth and anti-skate adjustable.
5:Terminations: stainless steel head shell clips, watch grade precision ( ± 0.1mm ) and finish, 24k Teflon Din
6:Complete grounding of entire tonearm for the lowest possible noise

Technical Date:
Pivot system : Multi-pivot static balance system
Effective length (pivot to stylus) : 230 mm (9”)
Overhang : 16mm
Offset : 23.5 degree
Recommend cartridge weight : 4-16g
Total weight( without counter weight) : 470g
Main counter weight : 62g
Incidental counter weight : 24g
Anti-skating weight : 2g
Arm base and headshell : Stainless steel
Arm tube : Carbon fiber
