PM-2 MKII Tube MM/MC Phono Stage
Tonearm

Turntable
Phono stage

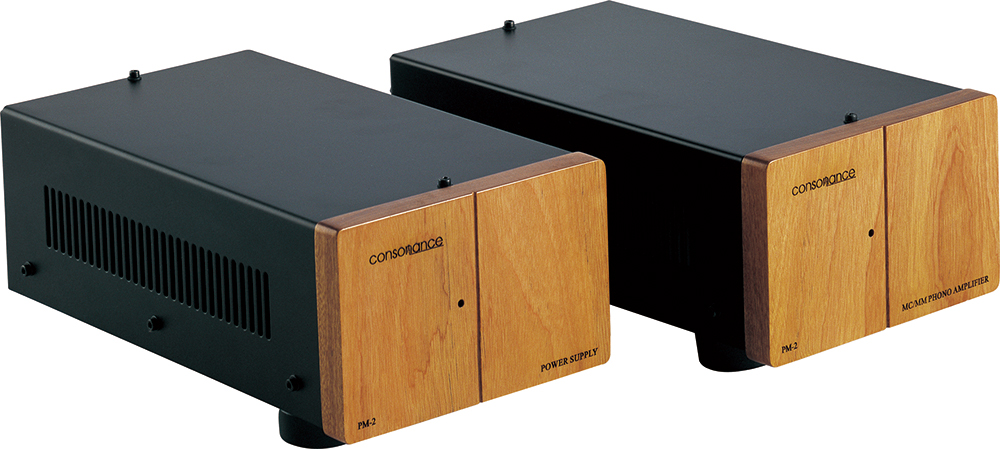

PM2 MM and MC tube phono amplifier features an external power supply , Amorphous core MC step-up transformer and a point-to-point wiring with layout for the lowest noise.

Specification
Control Functions: Power On/Off, Switch MM / MC, MC Switch 5 ohm / 40 ohm
Harmonic Distortion (for 2V RMS at output): 0.01%
Input Impedance: 47k ohms( MM), 5 ohm( MC), 40 ohm(MC)
Input Gain: 40dB (MM) / 66 dB (MC, 5 ohm)/ 57dB(MC ,40 ohm)
Input Interfaces: 1 group (RCA)
Output Interfaces: 1 group (RCA)
Grounding Interfaces: 1 group
Signal / Noise: 86dB
Consumption: 8watt
Vacuum Tube: 12AX7 x 2
Dimensions: 295(L) x 255(W) x 95(H) mm
Weight: 9kg
