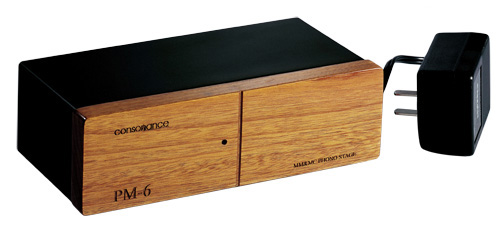

PM-6 Solid-State MM/MC Phono Stage


Specification:

Control Functions: Switch MM / MC
Harmonic Distortion: (for 2V RMS at output): 0.001%
Input Impedance: 47k ohms( MM ) , 3 ohm~800 ohm( MC )
Input Gain: 40dB (MM ) / 60 dB ( MC)
Output Interfaces: 1 group (RCA)
Input Interfaces: 2 group (RCA)
Grounding Interfaces: 1 group
Signal / Noise: 90dB
Consumption: 5watt
Dimensions: 200(L) x 98(W) x52(H) mm
Weight: 4kg
