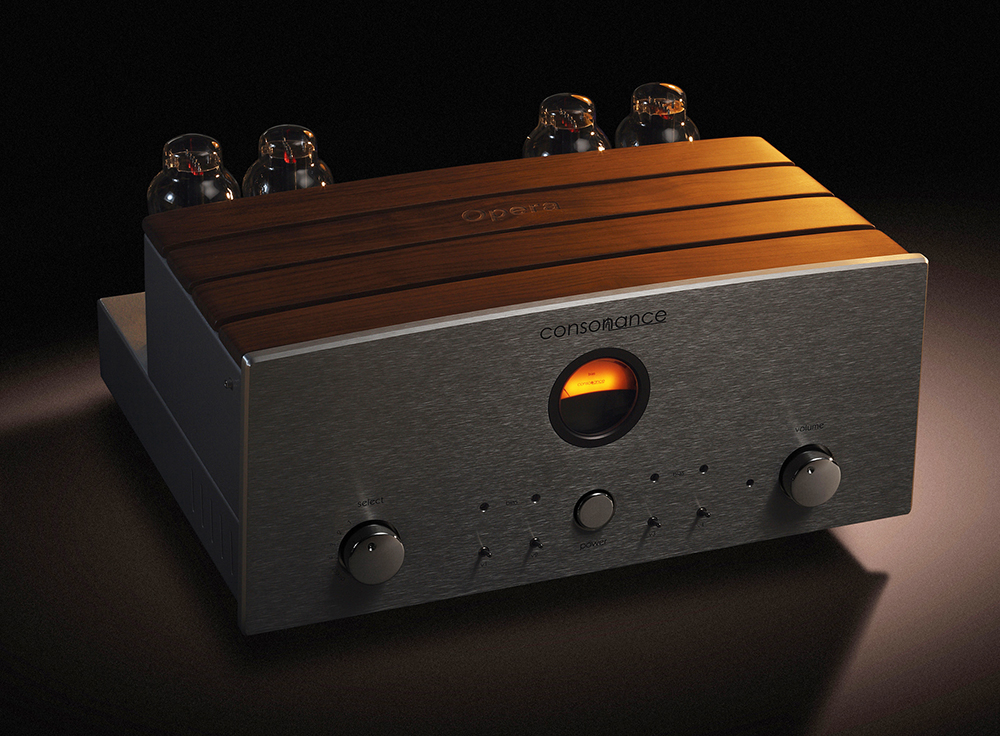

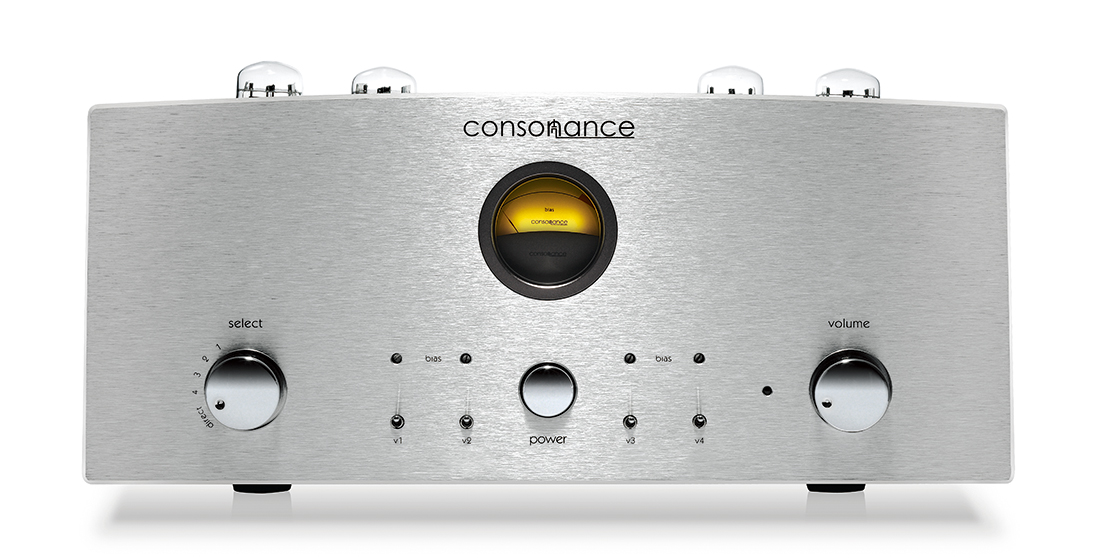

Reference5.5 MKII Integrated amplifier



Specification
Control Functions: Volume, Select, Power On/Off
Power Output: 18 watt x 2, RMS 1kHz
Total Harmonic Distortion: less than 1%(10watt, 1kHz)
Frequency Response: (-3dB points at 5 watt) 7Hz-47kHz
Input Sensitivity: 160mV
Input Impedance: 100k ohms
Output Impedance: 4, 8 ohms. (User selectable.)
Signal/ Noise: 80dB
Consumption: 182watt
Input Interfaces: 4 groups (RCA) --1, 2 ,3 and 4
Overall Negative Feedback: Little
Recommended Speaker Sensitivity: 90dB or better
Vaccum Tube: 300B x 4, 12AT7x 1, 12BH7 x 2
Dimensions: 470 ( L ) x 350 ( W ) x 220 ( H )mm
Weight: 30kg
