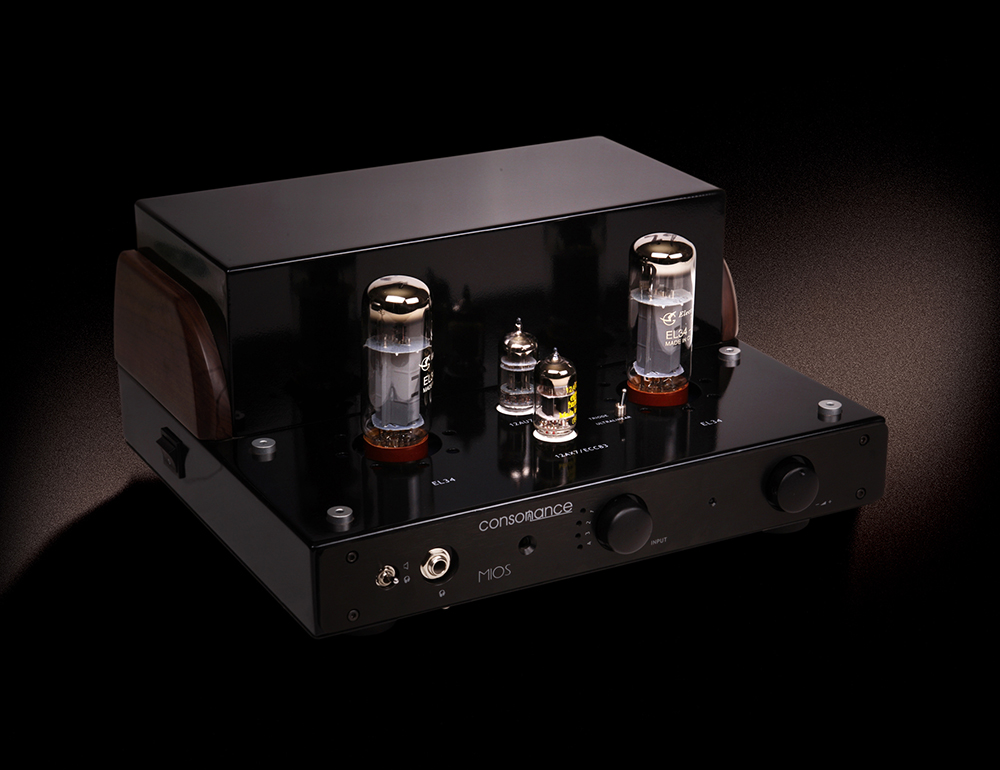

| M10S is a single ended Class A tube integrated amplifier, it can use 6550 and swapped to EL34 and KT77 only by re-biasing actually. As a mini size integrated tube amplifier, there is one feature which distinguish the Cyber 10 with similar pentode SE amp which use a self-bias circuit, M10S incorporate a fixed bias design for easy tube swap and more power delivering as well. Single bias adjustment mechanism for each output tube has been equipped inside chassis, a trim pot for adjustment to get to 0.4mA bias current. The bias adjustment can be measured by a voltmeter (not come with the amp). While the output tube is operating with in Ultra linear mode to give 12W output power, there is also a switch to operate the amp in triode mode which halves the output power to 6W. On the other hand, you could use M10S as a heavy design tube headphone amplifier with output transformer which can easily adapt to headphone having impedance ranging from 10 to 600 ohm. One 3.5mm jack and 3 RCA inputs have been equipped behind of chassis. Selectable and volume control is remote-able as well. |
||||||||||||||||||||||||||||||||||||||||||||
Specification |
||||||||||||||||||||||||||||||||||||||||||||
| CONTROL FUNCTIONS: Volume, Mode Switch, Power On/Off and Triode / Ultralinear Switch POWER OUTPUT: 12.5 watt (Ultralinear) / 8 watt (Triode) RMS 1kHz TOTAL HARMONIC DISTORTION: less than 1% (5 watt, 1kHz) FREQUENCY RESPONSE: ( -3dB points at 5 watt ) 6Hz-60kHz INPUT SENSITIVITY: 280mV INPUT IMPEDANCE: 100k ohms SPEAKER OUTPUT IMPEDANCE: 6~8 ohms HEADPHONE OUTPUT IMPEDANCE: 10~600 ohms SIGNAL/NOISE: 90dB CONSUMPTION: 86watt INPUT INTERFACES: 3 group (RCA),1 group 3.5mm jack for Ipod OUTPUT INTERFACES: speaker terminals and headphone jack - (on the front panel) OVERALL NEGATIVE FEEDBACK: Little (-6dB) VACUUM TUBE: KT88x2, ECC82 x1, ECC83 x1 DIMENSIONS: 320 (L) x 260 (W) x 150 (H) mm WEIGHT: 15kg (packed) |
||||||||||||||||||||||||||||||||||||||||||||
